Food safetyLaser keeps an eye for spoiled food

Published 21 October 2011

Minced meat, bread, fruit juice, and many other foods are packaged in a protective gas which extends their shelf life; there is currently no good method to check whether the packaging has the correct gas content — and thus, whether the content is spoiled or not; researchers have developed a new laser instrument which could solve the problem

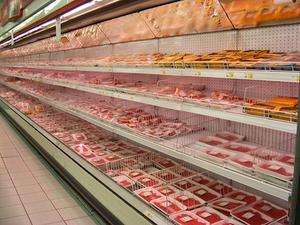

New device will improve freshness verification // Source: plasticclamshellpackaging.net

Minced meat, bread, fruit juice, and many other foods are packaged in a protective gas which extends their shelf life. There is currently no good method to check whether the packaging has the correct gas content. Researchers in atomic physics and packaging logistics have developed a new laser instrument which could solve the problem. The first product is expected to be ready for market launch later in the autumn. “It will be the first non-destructive method. This means that measurements can be taken in closed packaging and the gas composition over time can be checked. This will make it possible to check a much higher number of products than at present”, says Märta Lewander, doctor of atomic physics at Lund University in Sweden.

A Lund University release reports that Dr. Lewander developed the technique in her thesis and now works as chief technical officer for the company Gasporox, which is commercializing the technology.

Today, spot checks are performed on individual samples, with the risk that damaged products could slip through.

“We hope that, in the long term, this type of equipment could also help to stop people throwing so much food away, because they would know that it is packaged as it should be”, she says.

The release notes that the solution that will be launched in the autumn could be used to check and improve how airtight packaging is. Gasporox estimates that within two years the method could also be used as a means of quality control in production when products are packaged. In the future, shops could also use it to check the shelf life of their goods.

No plastic packaging is 100 percent airtight. How easily oxygen can enter depends on both the material and how well sealed the packaging is.

“It has been shown that part-baked bread, for example, doesn’t always meet the mark”, says Annika Olsson, Professor of Packaging Logistics at Lund University.

The technology can measure through almost all packaging materials. “As long as light can pass through then we can measure. Almost all materials allow at least some light to pass. Even packaging that contains aluminum foil, for example, some fruit juice cartons often has some part that is not covered by the foil”, says Lewander.

The release notes that research in the field is continuing. Patrik Lundin, a doctoral student in atomic physics, is now focusing on measuring carbon dioxide in packaging. “It is important to measure both oxygen and carbon dioxide. Oxygen is most important, but there is also interest in carbon dioxide from the industry”, says Lewander.

How the technology works

The protective atmosphere that surrounds the food product in the packaging usually comprises carbon dioxide or nitrogen and contains little or no oxygen. Oxygen leads to oxidization, bacteria growth, and decay. By shining a laser beam into the packaging and studying the light that comes back, it is possible to see whether the composition of the gas is correct. The laser beam measures the amount of oxygen.

The laser is connected to a handheld unit which is held against the sample. A handheld detector measures the light that comes out of the packaging and sends a signal to a computer.

The technology is based on a technique for measuring the gas composition of samples containing cavities. An early application was to diagnose sinusitis by enabling doctors at a primary health center to find out whether the sinuses were full of gas as they should be. Clinical studies have confirmed that the technique works, and this application is expected to be on the market within a year or two.
