Energy futuresPlacement of wind-turbine increases power tenfold

Published 18 July 2011

The power output of wind farms can be increased by an order of magnitude — at least tenfold — simply by optimizing the placement of turbines on a given plot of land; rather than build taller towers and bigger blades, efficient wind-based energy production should focus on the design of the wind farm itself, to maximize its energy-collecting efficiency at heights closer to the ground

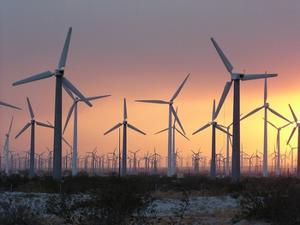

Turbine placement alone can increase energy output // Source: ecoo.it

The power output of wind farms can be increased by an order of magnitude — at least tenfold — simply by optimizing the placement of turbines on a given plot of land, say researchers at the California Institute of Technology (Caltech) who have been conducting a unique field study at an experimental two-acre wind farm in northern Los Angeles County.

A paper describing the findings — the results of field tests conducted by John Dabiri, Caltech professor of aeronautics and bioengineering, and colleagues during the summer of 2010 — appears in the July issue of the Journal of Renewable and Sustainable Energy.

A California Institute of Technology release reports that Dabiri’s experimental farm, known as the Field Laboratory for Optimized Wind Energy (FLOWE), houses twenty-four 10-meter-tall, 1.2-meter-wide vertical-axis wind turbines (VAWTs) — turbines that have vertical rotors and look like eggbeaters sticking out of the ground. Half a dozen turbines were used in the 2010 field tests (video and images of the field site can be found here).

Despite improvements in the design of wind turbines that have increased their efficiency, wind farms are rather inefficient, Dabiri notes. Modern farms generally employ horizontal-axis wind turbines (HAWTs) — the standard propeller-like monoliths that you might see slowly turning, all in the same direction, in the hills of Tehachapi Pass, north of Los Angeles.

In such farms, the individual turbines have to be spaced far apart — not just far enough that their giant blades do not touch. With this type of design, the wake generated by one turbine can interfere aerodynamically with neighboring turbines, with the result that “much of the wind energy that enters a wind farm is never tapped,” says Dabiri. He compares modern farms to “sloppy eaters,” wasting not just real estate (and thus lowering the power output of a given plot of land) but much of the energy resources they have available to them.

Designers compensate for the energy loss by making bigger blades and taller towers, to suck up more of the available wind and at heights where gusts are more powerful. “But this brings other challenges,” Dabiri says, such as higher costs, more complex engineering problems, a larger environmental impact. Bigger, taller turbines, after all, mean more noise, more danger to birds and bats, and — for those who don’t find the spinning spires visually appealing — an even larger eyesore.

The release quotes Dabiri to say that the solution
