In the trenchesHarvesting fuel for the fleet from seawater

Published 25 September 2012

Refueling U.S. Navy vessels, at sea and underway, is a costly endeavor in terms of logistics, time, fiscal constraints, and threats to national security and sailors at sea; in Fiscal Year 2011, the U.S. Navy Military Sea Lift Command, the primary supplier of fuel and oil to the U.S. Navy fleet, delivered nearly 600 million gallons of fuel to Navy vessels underway, operating fifteen fleet replenishment oilers around the globe; the Naval Research Laboratory believes there is a better way: extracting carbon dioxide (CO2) and producing hydrogen gas (H2) from seawater and then catalytically converting the CO2 and H2 into jet fuel

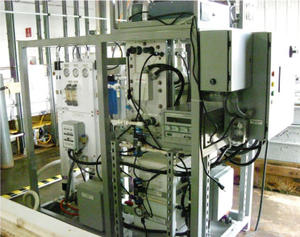

U.S. Navy's ambitions plan to extract fuel components from seawater // Source: navy.mil

Refueling U.S. Navy vessels, at sea and underway, is a costly endeavor in terms of logistics, time, fiscal constraints, and threats to national security and sailors at sea.

In Fiscal Year 2011, the U.S. Navy Military Sea Lift Command, the primary supplier of fuel and oil to the U.S. Navy fleet, delivered nearly 600 million gallons of fuel to Navy vessels underway, operating fifteen fleet replenishment oilers around the globe.

From seawater to CO2
Scientists at the U.S. Naval Research Laboratory are developing a process to extract carbon dioxide (CO2) and produce hydrogen gas (H2) from seawater, subsequently catalytically converting the CO2 and H2 into jet fuel by a gas-to-liquids process.

The potential payoff is the ability to produce JP-5 fuel stock at sea reducing the logistics tail on fuel delivery with no environmental burden and increasing the Navy’s energy security and independence,” says research chemist, Dr. Heather Willauer.

NRL says it  has successfully developed and demonstrated technologies for the recovery of CO2 and the production of H2 from seawater using an electrochemical acidification cell, and the conversion of CO2 and H2 to hydrocarbons (organic compounds consisting of hydrogen and carbon) that can be used to produce jet fuel.

The reduction and hydrogenation of CO2 to form hydrocarbons is accomplished using a catalyst that is similar to those used for Fischer-Tropsch reduction and hydrogenation of carbon monoxide,” adds Willauer. “By modifying the surface composition of iron catalysts in fixed-bed reactors, NRL has successfully improved CO2 conversion efficiencies up to 60 percent.”

A renewable resource
CO2 is an abundant carbon (C) resource in the air and in seawater, with the concentration in the ocean about 140 times greater than that in air. Two to three percent of the CO2 in seawater is dissolved CO2 gas in the form of carbonic acid, one percent is carbonate, and the remaining 96 to 97 percent is bound in bicarbonate. If processes are developed to take advantage of the higher weight per volume concentration of CO2 in seawater, coupled with more efficient catalysts for the heterogeneous catalysis of CO2 and H2, a viable sea-based synthetic fuel process can be envisioned. “With such a process, the Navy could avoid the uncertainties inherent in procuring fuel from foreign sources and/or maintaining long supply lines,” Willauer said.

NRL has made significant advances developing carbon capture technologies in the laboratory. In the summer of 2009 a standard commercially available chlorine dioxide cell and an electro-deionization
