ShelterOrigami-inspired, fuel-saving shelter for soldiers, disaster victims
Soldiers are often stationed in extreme environments, from desert to mountain conditions. The military spends millions of dollars every day on fuel for air conditioning or heat. A team of engineers had a goal: design a shelter for soldiers or disaster victims that could be quickly deployed in the field, but also reduce fuel consumption in heating and cooling. The team drew inspiration from origami, the ancient art of folding paper into eye-catching creations.

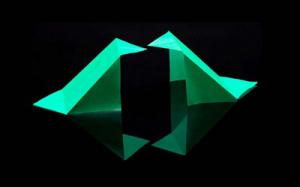

The paper models that inspired the shelter // Source: www.nd.edu
A team of Notre Dame engineers had a goal: design a shelter that could be quickly deployed in the field, but also reduce fuel consumption in heating and cooling.
Dr. Ashley P. Thrall, director of the University’s Kinetic Structure Laboratory, and her team drew inspiration from origami, the ancient art of folding paper into amazing creations. Thrall is the Myron and Rosemary Noble Assistant Professor of Structural Engineering. UND notes that the Kinetic Structures Laboratory is the only university laboratory in the United States which is dedicated to investigating kinetic structures for civil engineering applications.
“When Dr. Thrall showed me around the lab, there were moving structures and origami structures,” said Angelene Dascanio, an undergraduate student on the team. “It really changed my view of what I thought research entailed. She encouraged me to use my creativity in creating these designs.”
A Bolt of insight
The team of Thrall, Dascanio, and Chad Quaglia, M.S.’14, experimented with paper models in weekly team meetings. During one of their discussions, Dascanio laid her cell phone on the tail fold of a paper model to keep it from moving. When the larger part of the paper rose from the desk, Thrall had a bolt of insight — they could use a unique lever system to lift the heavy side panels and erect the four-part structure. The lever system developed by Thrall and her team allows for quick deployment of the structure walls. Without it, raising the walls would be a more laborious process involving more personnel and time.
Solving formidable problems
The origami-inspired shelter in development at Notre Dame solves a formidable problem. The U.S. Army Natick Soldier Research, Development and Engineering Center is funding the research.
Soldiers are often stationed in extreme environments, from desert to mountain conditions. The military spends millions of dollars every day on fuel for air conditioning or heat. When the cost of the fuel, transportation, and security for fuel missions is combined, a gallon of fuel can cost hundreds of dollars. More importantly, hundreds of Americans have died during fuel missions in Iraq and Afghanistan.
The shelter designed by Thrall and her team would reduce energy consumption by 70 percent, could be deployed by a few soldiers in less than an hour, and could be transported by plane, ship or truck on a standard military pallet. The thermally insulated rigid-wall structure could save the military hundreds of millions of dollars a year in fuel costs when compared to canvas tents. It also holds great promise as an environmentally friendly shelter for disaster-relief efforts around the world.
UND notes that this effort is an interdisciplinary project with mechanical and electrical engineering faculty, postdoctoral research associates, and students who are developing optimized control systems for heating and cooling to further reduce energy consumption.
