Carbon captureBreakthrough in continuous monitoring of CO2 leaks from carbon storage sites
Underground storage of CO2 produced from fossil fuel burning, rather than releasing it into the atmosphere, could play an important role in suppressing climate change. Ensuring that the CO2 does not leak from the storage site is key – but the high number of surveys necessary to make sure there is no CO2 leak makes this a costly endeavor. A team of Japanese researchers may have found a means of achieving easier and lower-cost monitoring for leaks of CO2 stored in underground reservoirs.

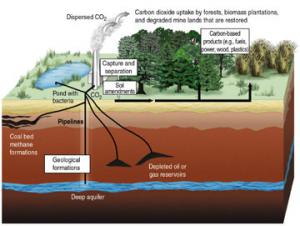

Schematic of one method of sequestration // Source: commons.wikimedia.org
Carbon capture and storage projects rely on effective monitoring of injected CO2. However, the high number of necessary surveys makes this a costly endeavor. A team of Japanese researchers may have found a means of achieving easier and lower-cost monitoring for leaks of CO2 stored in underground reservoirs. A recently published article from a team led by researchers at Kyushu University’s International Institute for Carbon-Neutral Energy Research (I2CNER) shows how underground CO2 storage sites could be continuously monitored for leaks — a breakthrough for monitoring applications.
Underground storage of CO2 produced from fossil fuel burning, rather than releasing it into the atmosphere, could play an important role in suppressing climate change. However, to safeguard those living at the surface and regulate the climate, ensuring that the CO2 does not leak from the storage site is key.
I2CNER reports that current monitoring methods are costly and only carried out periodically, but by using techniques more often used to study earthquakes and volcanic eruptions, the team used analysis of seismic waves to show it is possible to detect movement of subterranean fluids and to identify leaks before they reach the surface.
“One of the main issues” lead author Tatsunori Ikeda says, “was that we had to be sure we could distinguish between seismic wave signals from a CO2 leak and noise from other near-surface disturbances.”
Drawing on previous work across multiple disciplines, the method was developed and rigorously analyzed using computer simulations, before being field-tested near a busy road in central Japan’s Tokai region.
“We used an ACROSS unit and a series of geophones to test the method,” coauthor Takeshi Tsuji says. Given the success of the experiment, “a real opportunity for application of this work is that microseismic monitoring arrays typically installed at storage sites could provide the data needed to identify any leakages and decrease the need for more costly 4D seismic studies that are the industry norm.”
Additional testing to refine the method and further improve its accuracy is one branch of work being carried out as part of I2CNER’s interdisciplinary efforts to advance the development of carbon capture and storage and boost efforts for achieving a carbon-neutral society.
— Read more in Tatsunori Ikeda et al., “Development of surface-wave monitoring system for leaked CO2 using a continuous and controlled seismic source,” International Journal of Greenhouse Gas Control 45 (February 2016): 94–105 (doi:10.1016/j.ijggc.2015.11.030)
